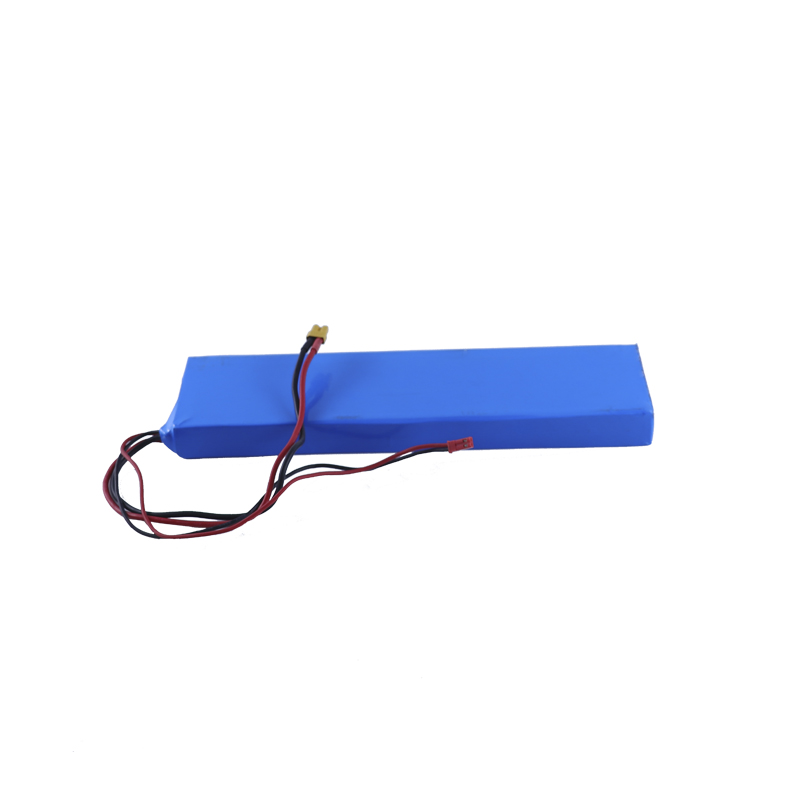

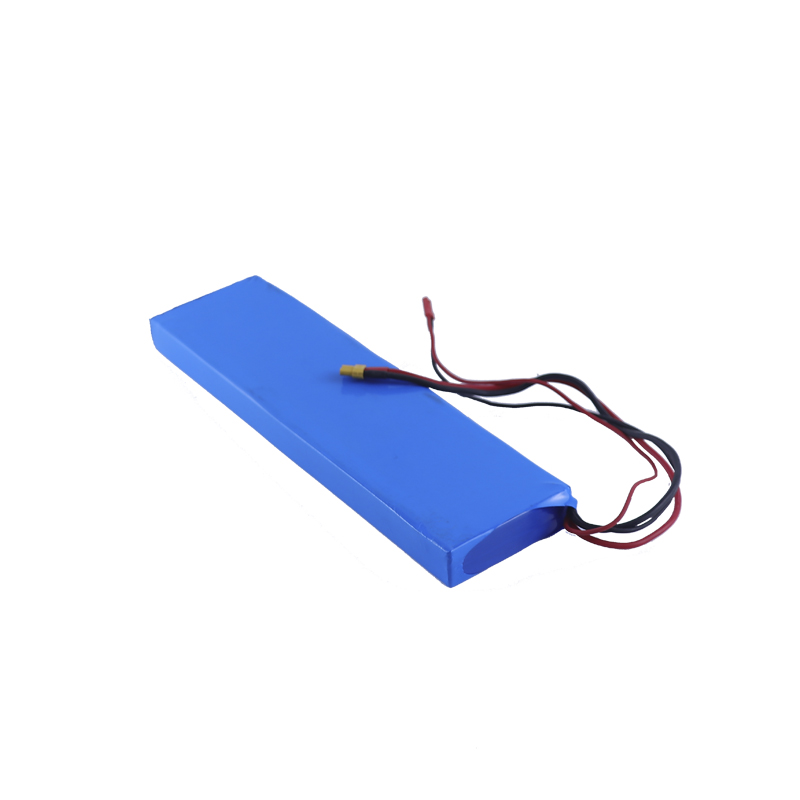

24V 5Ah Electric Scooter Battery

Date: 2022-01-11

24V 5Ah electric scooter battery adopts a battery pack composed of 14 18650 3.6V 2500mAh single cells and high-quality 7S protection plate, with stable capacity, long service life and high capacity. It supports 5A charging and 10A discharge, with overcharge, over discharge, overcurrent and temperature protection, long cycle life and good safety performance

Description

Product Parameters

1、Pack Assembly Model:7S2P
2、Nominal voltage:25.2V
3、Charging limit voltage:29.4V
4、Nominal capacity:5000mAh
5、Max. charge current:5A
6、Max. discharge current:10A
7、Discharge cut-off voltage:19.25V
8、Initial AC Impedance:≤200mΩ(at 1kHz after standard charge)
9、Shipment Voltage:≥25.2V

Application and After-Sales Service

Application field:Electric scooter
After-Sales Service:The period of warranty is one year from the date of shipment. Shikeqi guarantees to give a replacement
in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.

our factory 1

our factory 2

our factory 3

Please feel free to leave your needs here, a competitive quotation will be provided according to your requirement.
